Motor for Photon Series
HomeStore

Motor for Photon Series

Motor for Photon Series

Product Specifications

Compatible Weight Package Dimensions Parameter
Photon Mono M7 Max 782g 482*70*74mm 42*42*60mm / Length 363mm / Lead screw diameter 10mm / With anti-backlash nut / Anti-loose movement
Photon Mono M7 Pro、Photon Mono M7 561g 400*71*75mm 42 screw motor / 42*42*48MM / diameter 8MM / length 305MM / ead 2MM / pitch 2MM / 1.8°
Photon Mono M5s Pro、Photon Mono M5s、Photon Mono M5 630g 415*93*68mm 42*42*48mm / Diameter 8mm / Length 305mm / Lead 2mm / Pitch 2mm / 1.8° POM anti-backlash nut
Photon Mono 2 546g 348*71*74mm 42.3X42.3X48mm/diameter 8mm/length 263mm/lead 2mm/pitch 2mm/step angle 1.8°
Photon M3 Max 397g 116*72*70mm Stepper motor/42*42*48mm/shaft length 12mm

Replacement Guide

Please learn about the replacements on Anycubic Wiki.

Select FOR 3D PRINTERS
From $13.21

Original: $44.05

-70%
Motor for Photon Series—

$44.05

$13.21

More Images

Motor for Photon Series - Image 2
Motor for Photon Series - Image 3

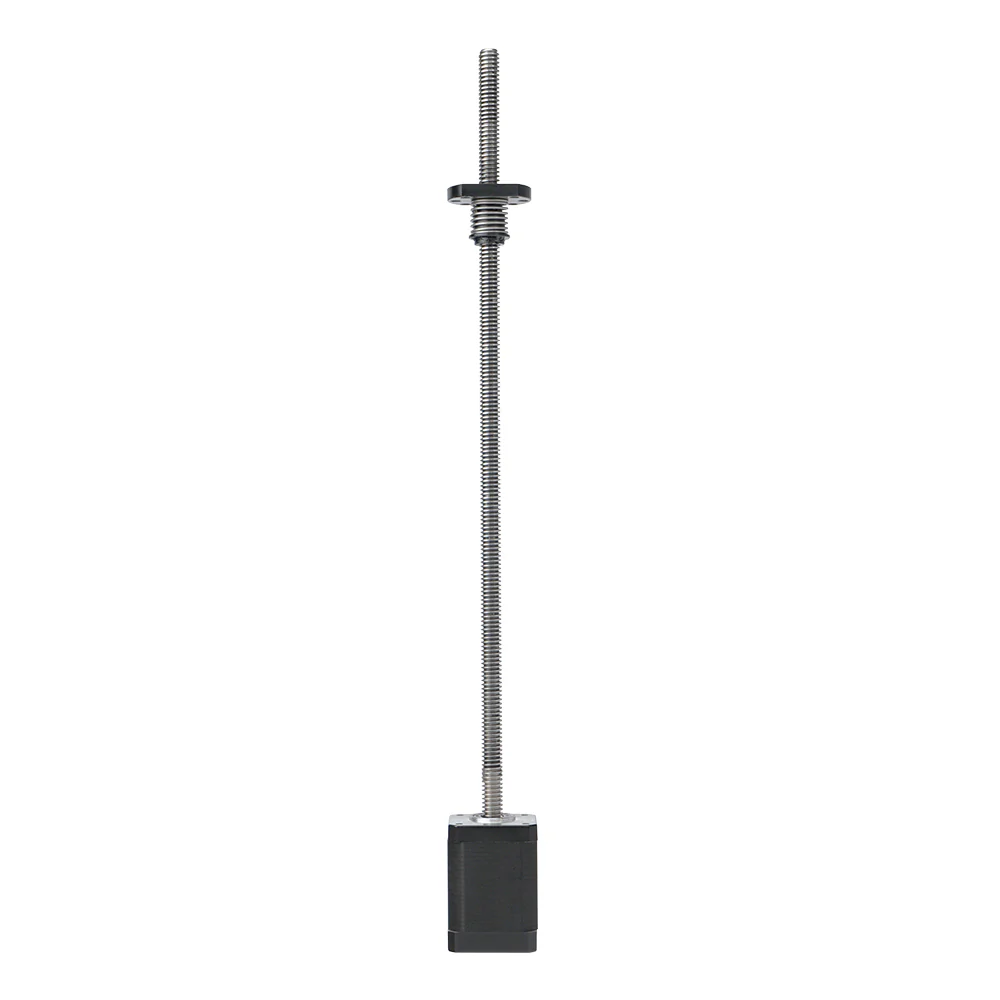

Motor for Photon Series - Image 4

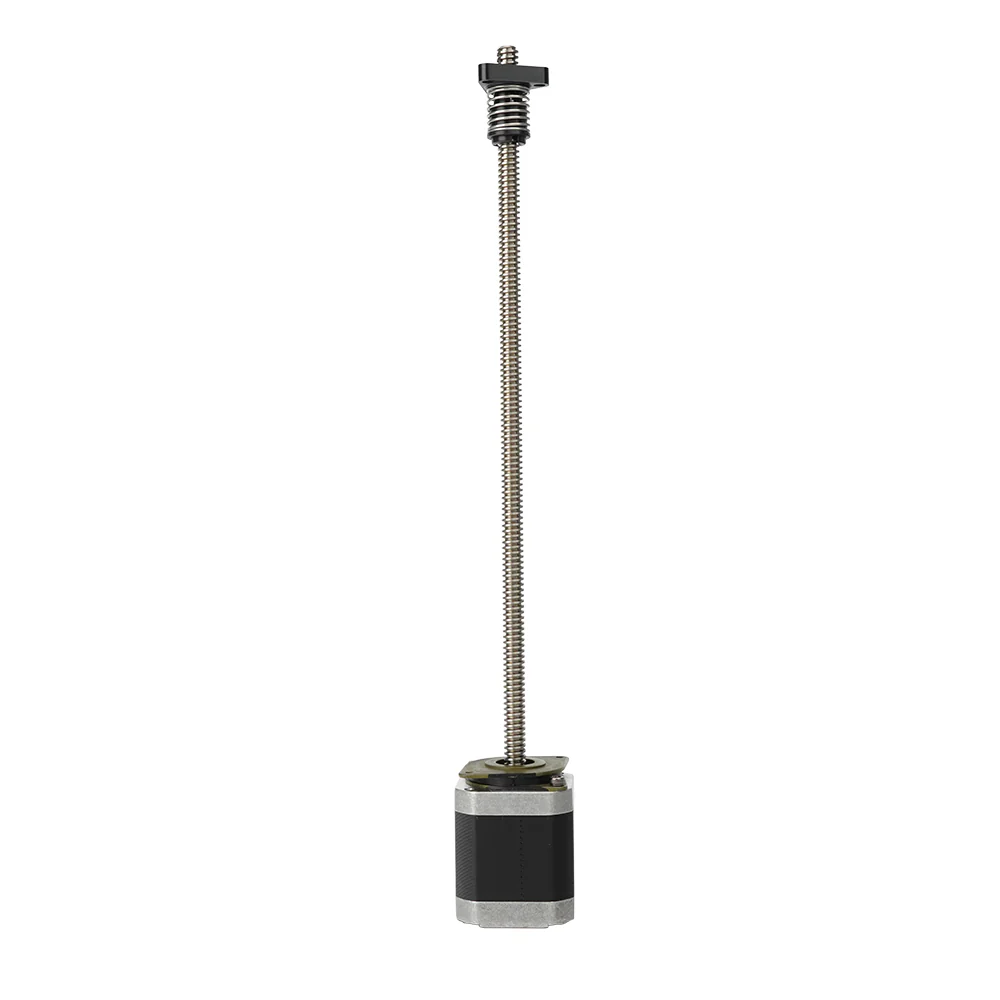

Motor for Photon Series - Image 5

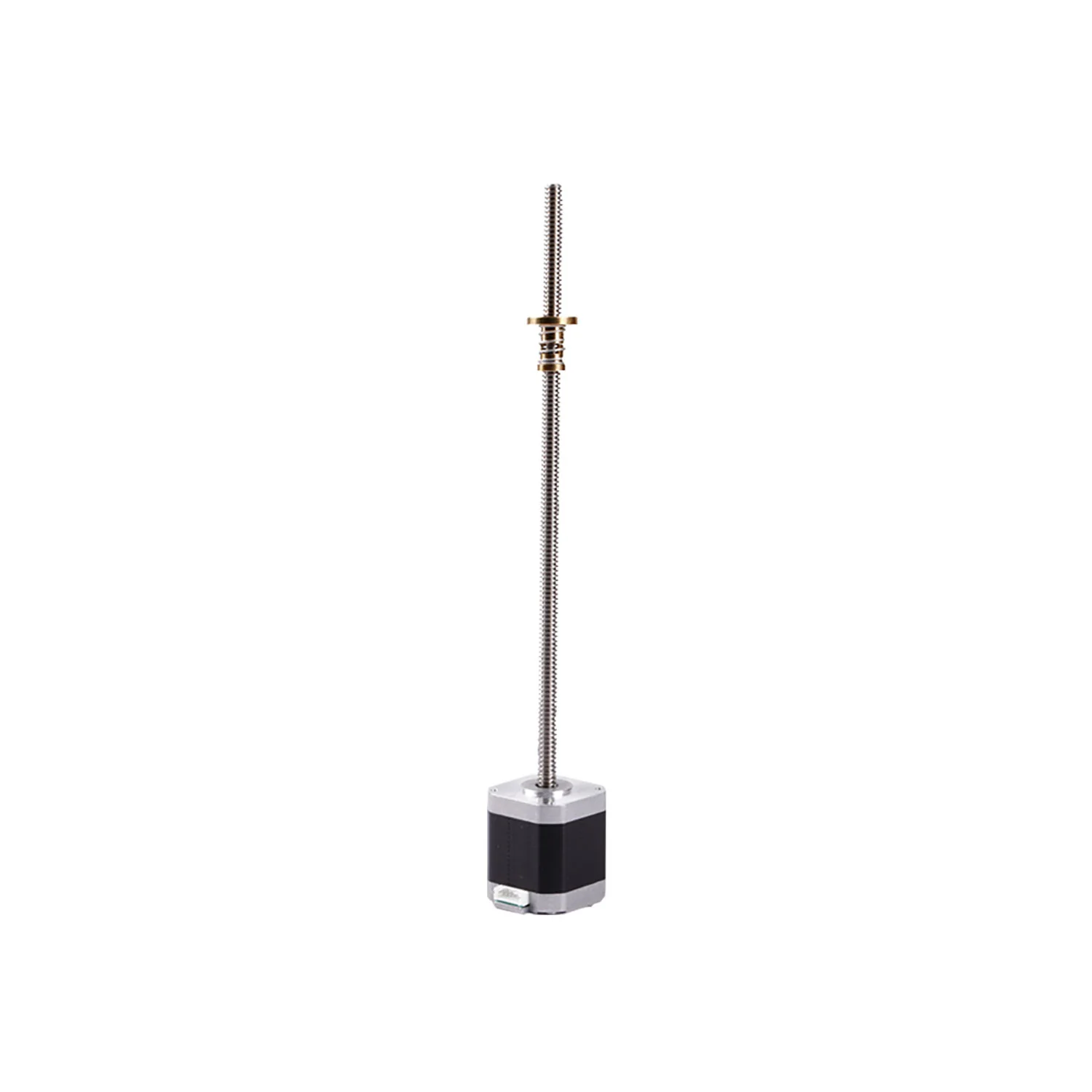

Motor for Photon Series - Image 6

Motor for Photon Series

Product Specifications

Compatible Weight Package Dimensions Parameter
Photon Mono M7 Max 782g 482*70*74mm 42*42*60mm / Length 363mm / Lead screw diameter 10mm / With anti-backlash nut / Anti-loose movement
Photon Mono M7 Pro、Photon Mono M7 561g 400*71*75mm 42 screw motor / 42*42*48MM / diameter 8MM / length 305MM / ead 2MM / pitch 2MM / 1.8°
Photon Mono M5s Pro、Photon Mono M5s、Photon Mono M5 630g 415*93*68mm 42*42*48mm / Diameter 8mm / Length 305mm / Lead 2mm / Pitch 2mm / 1.8° POM anti-backlash nut
Photon Mono 2 546g 348*71*74mm 42.3X42.3X48mm/diameter 8mm/length 263mm/lead 2mm/pitch 2mm/step angle 1.8°
Photon M3 Max 397g 116*72*70mm Stepper motor/42*42*48mm/shaft length 12mm

Replacement Guide

Please learn about the replacements on Anycubic Wiki.

Product Information

Shipping & Returns

Description

Product Specifications

Compatible Weight Package Dimensions Parameter
Photon Mono M7 Max 782g 482*70*74mm 42*42*60mm / Length 363mm / Lead screw diameter 10mm / With anti-backlash nut / Anti-loose movement
Photon Mono M7 Pro、Photon Mono M7 561g 400*71*75mm 42 screw motor / 42*42*48MM / diameter 8MM / length 305MM / ead 2MM / pitch 2MM / 1.8°
Photon Mono M5s Pro、Photon Mono M5s、Photon Mono M5 630g 415*93*68mm 42*42*48mm / Diameter 8mm / Length 305mm / Lead 2mm / Pitch 2mm / 1.8° POM anti-backlash nut
Photon Mono 2 546g 348*71*74mm 42.3X42.3X48mm/diameter 8mm/length 263mm/lead 2mm/pitch 2mm/step angle 1.8°
Photon M3 Max 397g 116*72*70mm Stepper motor/42*42*48mm/shaft length 12mm

Replacement Guide

Please learn about the replacements on Anycubic Wiki.
